Edit in 2D. Or 3D.
One design. Both views stay in sync.
AI drafting assistant for power infrastructure, from switchgear to power stations
Elora is an AI electrical engineer for mining, energy and data-centre projects. It helps draft general arrangements and 3D models, one-lines, schematics, and prepares your tender documents.
No credit card required
See it work AI electrical drafting
Describe the change.
See it in 2D and 3D.
Draft switchgear, switchrooms and microgrids. Keep drawings and models in sync as your design changes.
2D drawings and 3D models · Illustrative demo
Check your standards.
Review clearances, assumptions and design checks before they reach site.
Built for electrical engineers.
From switchgear to power station.
Explore the examples
Any project. Any scale.
Open an example to explore the model, drawing views and layers.
Illustrative model

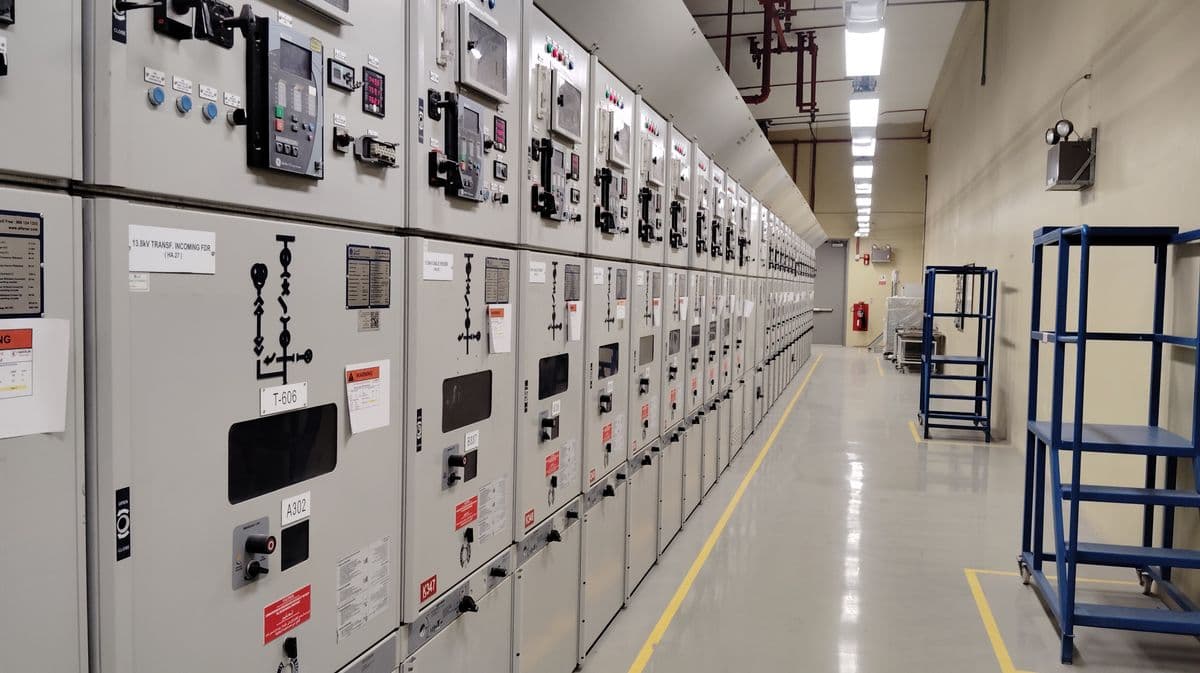

Switchgear

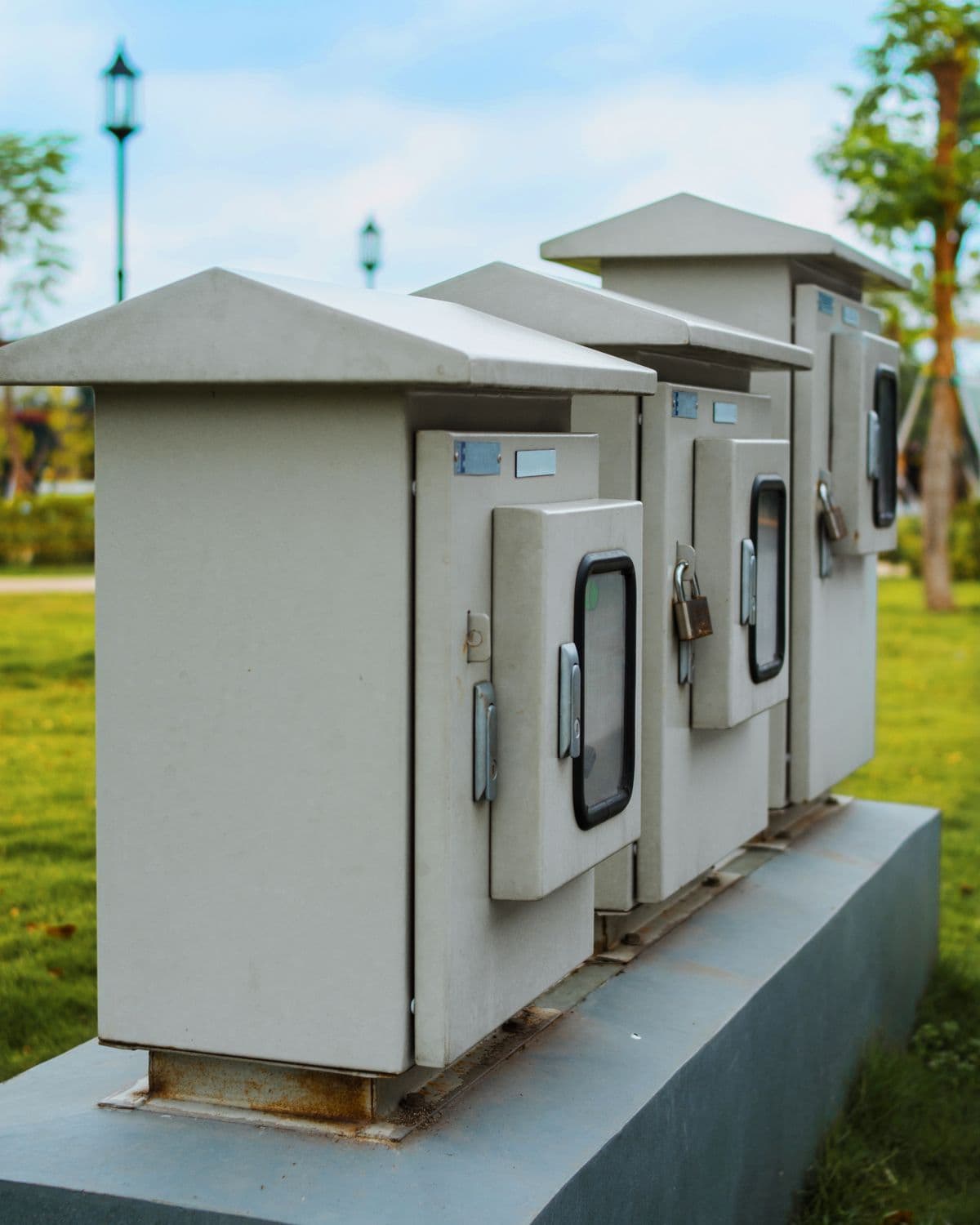

Lay out sections, feeders and enclosures in one design.
- Reference rating
- 1,600 A · 480/277 V
- Reference footprint
- 30 in × 60 in cabinet
- Demo views
- 2D + 3D
Illustrative model
Switchrooms
Coordinate equipment, clearances and access before site.
- Reference rating
- 11 kV
- Reference footprint
- ≈ 45 ft 2 in × 31 ft 9 in (building)
- Demo views
- 2D + 3D
Illustrative model

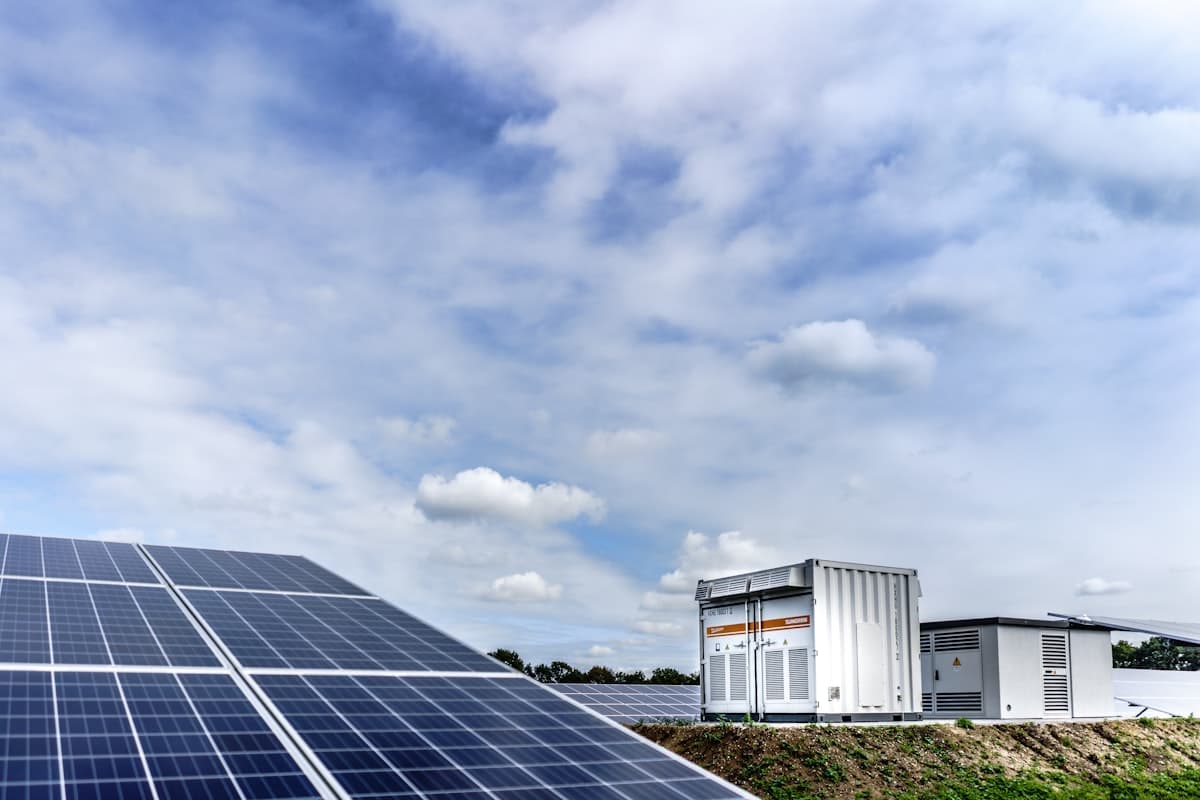

Microgrid Power Station
Coordinate generation, transformers and switchgear.
- Reference rating
- 1,000 kW standby / unit
- Reference footprint
- 40 ft × 8 ft, without trailer
- Demo views
- 2D + 3D
Your electrical drawing set
From the single line
to the detailed design.
- Single line diagram / one-line
- Show the electrical system, from incoming supply and busbars to protection and outgoing feeders.
- Schematic
- Detail control and protection circuits, terminal connections, cable cores and equipment references.
- General arrangements
- Coordinate equipment layouts, elevations, dimensions, access and working clearances alongside your 3D model.
