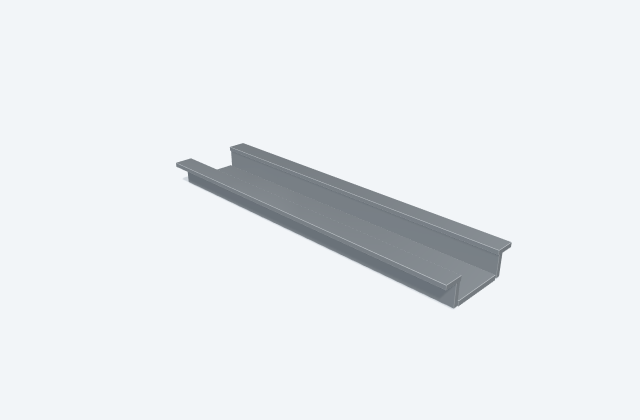

HFWDR24C General arrangement objects AutomationDirect HFWDR24C mounting-rail component HFWDR24C is the drawing identifier for mounting-rail component in AutomationDirect's Enclosure Accessories collection. A mounting-rail component supports compatible panel devices. The rail profile, mounting method and load support must be selected for the actual equipment arrangement.
Drawing use GA
Application Equipment layouts
Reference family Manufacturer A distinction that matters This reference concerns the named HFWDR24C drawing and its mounting-rail component role. A drawing in the same collection is not automatic evidence of compatible terminals, mounts or electrical performance.
GA General arrangement objects DIN mounting rail A mounting rail provides a mechanical support system for compatible components.
Drawing use GA / SLD
Application Equipment layouts
Reference family Manufacturer A distinction that matters A rail profile designation is not an equipment footprint or load-bearing assessment.
Follow the full entry for source drawings and the appropriate standard or selected product. Equipment previews show a manufacturer drawing where available, otherwise a 3D thumbnail.
