WACSHELF18

General arrangement objects

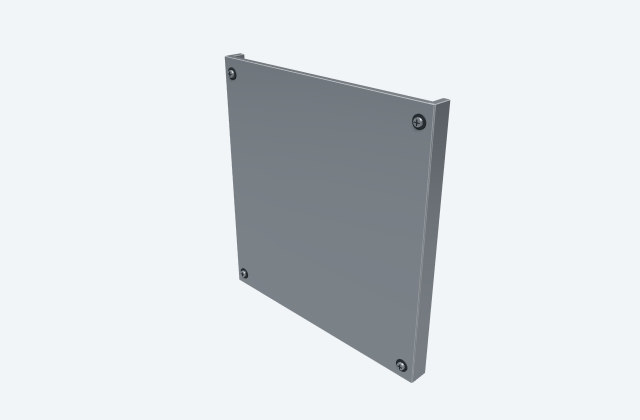

AutomationDirect WACSHELF18 enclosure shelf

WACSHELF18 is the drawing identifier for enclosure shelf in AutomationDirect's Enclosure Accessories collection. An enclosure shelf supports the selected equipment inside a compatible enclosure. Its fixing, support and access requirements must be checked against the equipment arrangement.

Drawing use

GA

Application

Equipment layouts

Reference family

Manufacturer

A distinction that matters

This reference concerns the named WACSHELF18 drawing and its enclosure shelf role. A drawing in the same collection is not automatic evidence of compatible terminals, mounts or electrical performance.

Full referenceAdd to legend

Plate

General arrangement objects

Mounting plate

A mounting plate provides an installation surface within an enclosure. Its size, material, location and fitting depend on the selected enclosure system and accessories. An internal panel layout uses it to organise component placement and interface references.

Drawing use

GA

Application

Equipment layouts

Reference family

Manufacturer

A distinction that matters

A generic rectangle does not establish a fabrication size or drilling layout. Use the selected plate and component information.

Full referenceAdd to legend

Follow the full entry for source drawings and the appropriate standard or selected product. Equipment previews show a manufacturer drawing where available, otherwise a 3D thumbnail.
