For generator enclosure manufacturers

Generator enclosure GAs, drafted by AI.

Elora Grid reads an RFQ for a generator enclosure and drafts a General Arrangement for your review.

Book a demoSee how it works
How it works

From enquiry to drawings in three steps

  1. 01

    Share what you've got

    A marked-up drawing, a rough sketch, a calculation, a list of equipment. Whatever you have, however far along the design is.

  2. 02

    Drawings drafted readable in pdf and autodesk

    General arrangements and schematics drafted by AI in native autocad files and pdf.

  3. 03

    Automatically updates an auditable change-tracking log

    Every version is saved as it's drafted, so you can see exactly what changed, when, and open any earlier version again.

01 · General arrangements

Enclosure GAs, drafted around the genset

Side and end elevations sized around the engine, alternator and base tank, with every note tied back to the clause that asked for it.

  • Acoustic treatment, inlet and discharge louvres
  • Base fuel tank, silencer and exhaust stack
  • Each note traced to its line in the spec
Enquiry_Spec_Rev2.pdfSection 3, p.4
  1. 13.1Acoustic enclosure to 65 dB(A) at 7 m, attenuated air inlet.
  2. 23.4Base fuel tank for 24 hours at full load, double-wall.
  3. 33.6Roof-mounted critical-grade silencer with exhaust stack.
  4. 43.9Lift from four roof lifting points.
02 · Schematics

Schematics, from alternator to auxiliaries

Power and control schematics for everything inside the enclosure: the main breaker, metering, auxiliary circuits and engine controls.

  • Breaker ratings and circuit references
  • Engine start, shutdown and alarm circuits
  • Terminal numbers carried through
03 · AutoCAD files

Works in native AutoCAD files

The GA and schematics come out as real AutoCAD drawings your drafters can open, edit and send, plus a PDF for review.

  • Open and edit in AutoCAD like any other drawing
  • Layers and title blocks set up the way your team works
  • A PDF copy to send with the quote
Project files · Genset enclosureExample
  • DWGGA-1042 Enclosure GARev C · 16 layersPDF
  • DWGSC-1043 Genset switchboardRev A · 11 layersPDF
  • DWGSC-1044 Engine controlsRev A · 9 layersPDF

Opens and edits in AutoCAD. PDF copies for review.

04 · Change log

Automatically maintains an auditable change-tracking log

When the customer changes the spec, every update to the drawing is recorded: what changed, when and why. Anyone can see the full history and open an earlier revision.

  • Every revision saved, nothing overwritten
  • See exactly what changed between versions
  • A clear record of what the customer approved
GA-1042 Enclosure GA · Revision historyExample

  1. Base fuel tank run time increased

    Rev C · Engineer review · 14 Sep, 10:42

    24 HR48 HR

  2. Noise limit tightened in spec Rev 2

    Rev B · AI update from spec · 12 Sep, 16:05

    75 dB(A)65 dB(A)

  3. First issue for review

    Rev A · AI draft from enquiry · 10 Sep, 09:18

Every revision kept. Open any earlier version.

Who it is for

For every enclosure you build around a genset

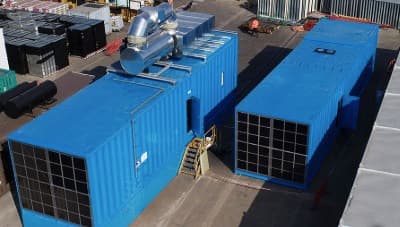

Acoustic enclosures

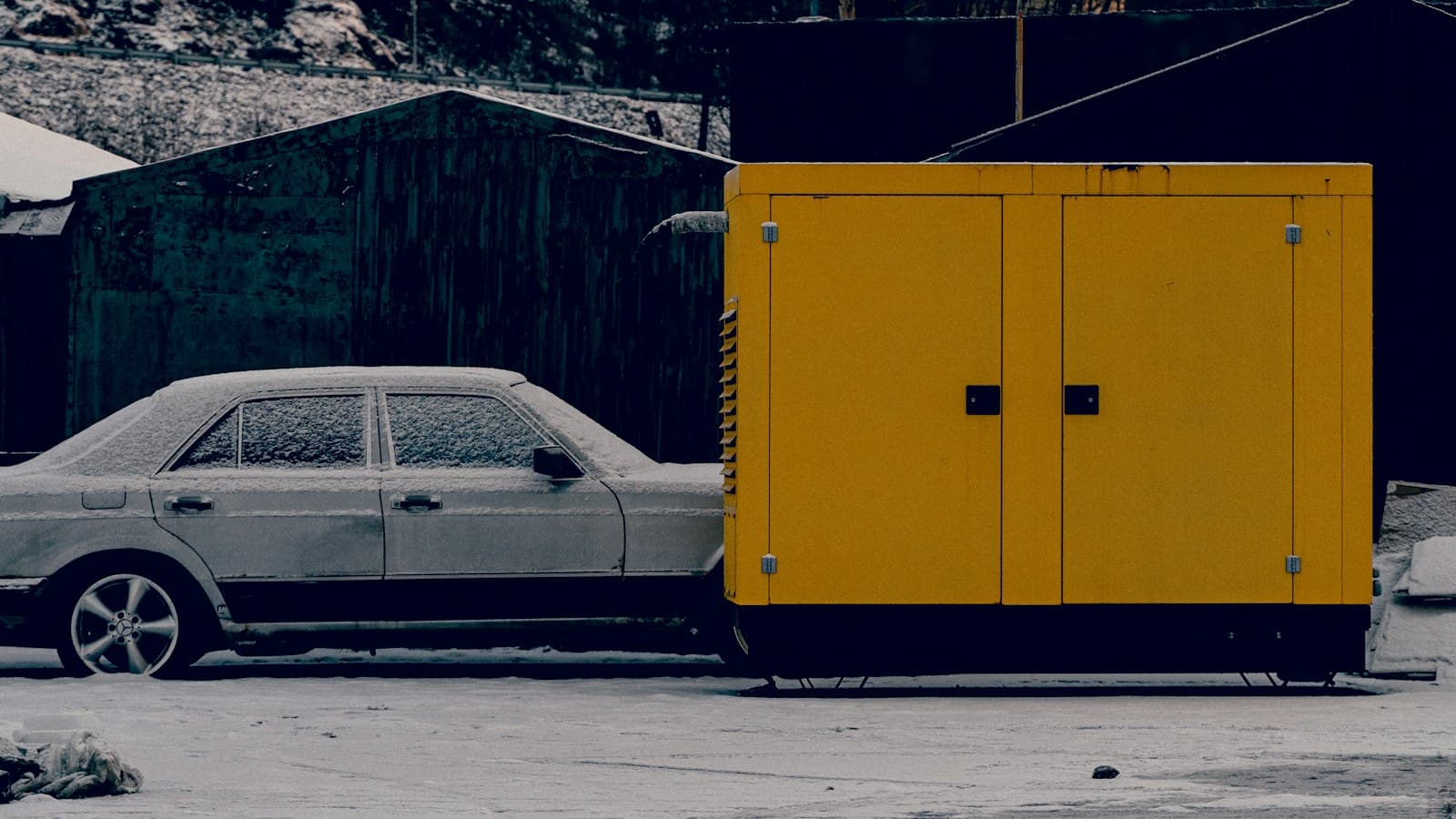

Canopy gensets
Site-installed enclosures
Data center backup power

Your team stays in charge

Your drafters sign off

Every drawing is a draft for your team to check. Nothing is issued without them.

Traced to the spec

Dimensions, ratings and notes link back to the line of the spec that set them.

Your drawing standards

Your title block, symbols and conventions, not a generic template.

Private by default

Nothing you upload is used to train a model.

Book a demo

See it draft one of your enquiries

Leave your details and we'll set up a demo on a past generator enclosure enquiry of yours, so you can judge the drawings on a job you know.

  • A reply from a person, usually within one business day
  • Run on one of your own jobs or demo data
  • NDA available on request
