Side-by-side reference

Understand the difference.

Compare the meaning, drawing context and source references of two entries. A similar graphic or shared abbreviation does not establish equivalence.

First referenceCompare with

PSC 60

General arrangement objects

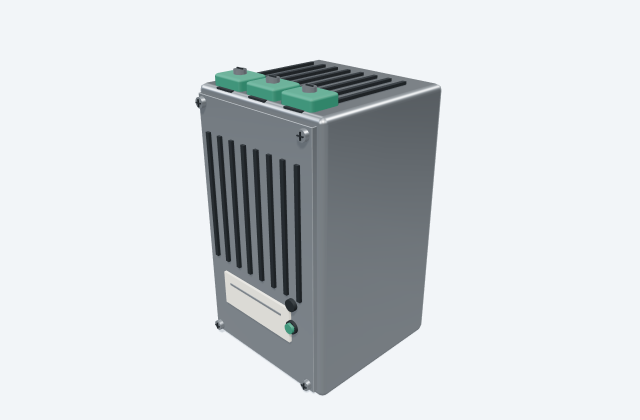

Altech PSC-60 power-supply housing

Reserve rail space for the power supply, its terminals and a route for input and DC output wiring. Confirm the fitted voltage variant in the equipment schedule.

Drawing use: GA
Application: Control circuits
Reference family: Manufacturer

A distinction that matters

Shared mechanical geometry does not make the output-voltage variants electrically interchangeable.

Full reference

General arrangement objects

DIN-rail AC/DC power supply

A DIN-rail power supply converts an input supply into a specified DC auxiliary supply.

Drawing use: GA / Schematic
Application: Control circuits
Reference family: Manufacturer

A distinction that matters

Its nominal output rating does not guarantee sufficient headroom for every load or transient.

Full reference

Follow the full entry for source drawings and the appropriate standard or selected product. Equipment previews show a manufacturer drawing where available, otherwise a 3D thumbnail.
