Neutral earthing resistor cabinet
A neutral earthing resistor limits neutral-to-earth fault current in the specified system.
In plain English
A neutral earthing resistor limits current in the designed connection between a system's neutral and earth during an earth fault.
In a microgrid substation, the resistor can limit earth-fault current on the selected generator or transformer neutral connection.
Use the selected manufacturer's drawings to check the equipment's size, mounting points and cable connections. The layout helps you plan where it fits and how it can be reached for maintenance. An illustrative 3D preview does not establish product dimensions or required clearances.
Read the source: Post Glover neutral grounding resistor enclosure: official source

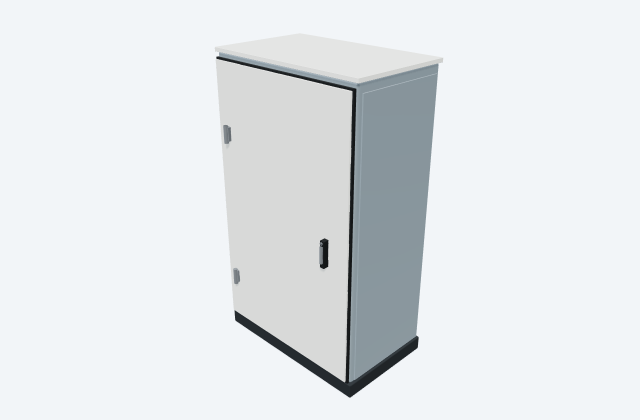

An original 3D illustration of this equipment type. Rotate and zoom to explore its shape. It does not represent an exact manufacturer model or dimensional layout.
Drag to rotate · Scroll or pinch to zoom · Original educational visualisation. Relative proportions; use the selected manufacturer drawing for dimensions.
Locate the resistor enclosure relative to the transformer neutral connection and earthing route. Preserve access to termination points and the selected ventilation faces.
Use the linked manufacturer drawing or project mechanical files for dimensions and the exact selected revision. This original educational illustration is unitless and not to scale.
The source is a typical PDF outline, not a native CAD model or proof of the final resistor rating and duty.
