Edit in 2D. Or 3D.
One design. Both views stay in sync.
Build switchboards, switchrooms, and microgrids.
Elora is an AI electrical engineer to help you draft electrical drawings, general arrangements, 3D models, and prepare tender documents.
See it work AI electrical drafting
Describe the change.
See it in 2D and 3D.
Draft switchboards, switchrooms and microgrids. Keep drawings and models in sync as your design changes.
2D drawings and 3D models · Illustrative demo
Check your standards.
Review clearances, assumptions and design checks before they reach site.
Built for electrical engineers.
From switchboard to power station.
Explore the examples
Any project. Any scale.
Open an example to explore the model, drawing views and layers.
Illustrative model
Switchboards
Lay out sections, feeders and enclosures in one design.
- Reference rating
- 1,600 A · 480/277 V
- Reference footprint
- 30 in × 60 in cabinet
- Demo views
- 2D + 3D
Illustrative model
Switchrooms
Coordinate equipment, clearances and access before site.
- Reference rating
- 11 kV
- Reference footprint
- ≈ 45 ft 2 in × 31 ft 9 in (building)
- Demo views
- 2D + 3D
Illustrative model

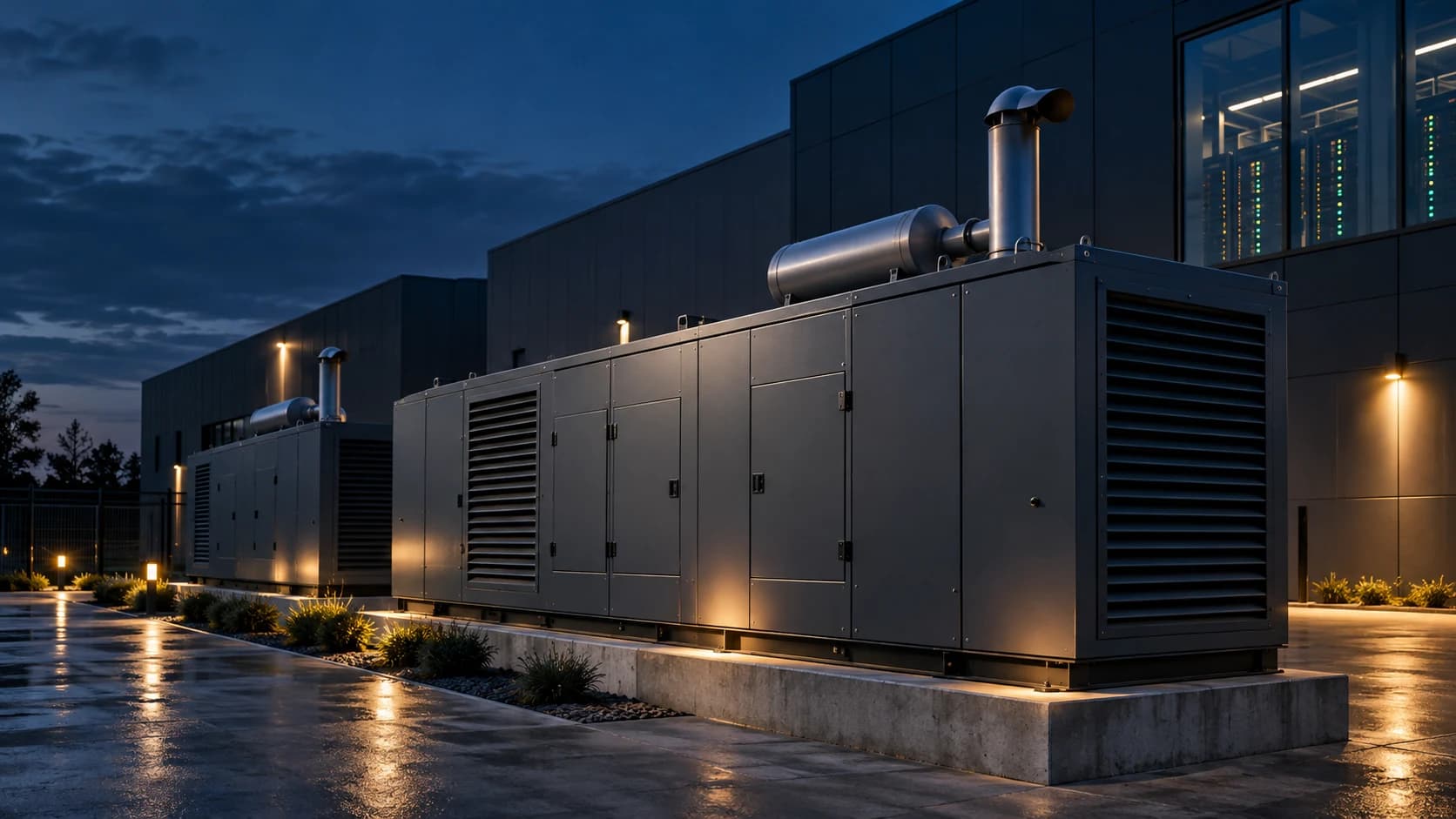

Microgrid Power Station
Coordinate generation, transformers and switchgear.
- Reference rating
- 1,000 kW standby / unit
- Reference footprint
- 40 ft × 8 ft, without trailer
- Demo views
- 2D + 3D
